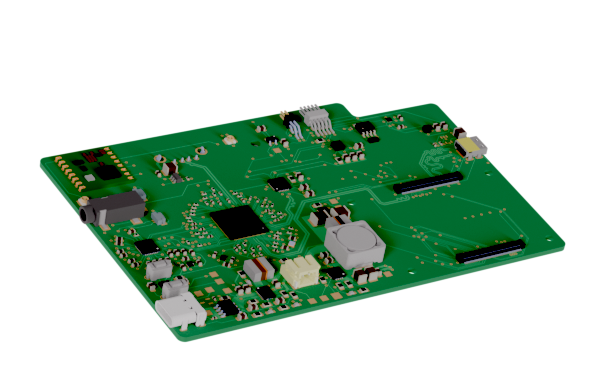

Launching a physical hardware product, a custom mechanical keyboard layout, or a new robotics module is an incredible milestone. You have spent weeks routing traces, verifying schematic symbols, and triple-checking your layout.

But when moving from a computer screen to a live SMT pick-and-place assembly line, a hard truth emerges: a perfectly functional schematic does not automatically mean a board is easy to build.

This is where Design for Assembly (DFA) comes in. DFA is the practice of designing your printed circuit board specifically to minimize manufacturing errors, reduce assembly time, and lower overall production costs. When you are running low-volume prototypes, a solid DFA strategy is the difference between receiving working boards in days or facing costly, time-consuming delays.

To help you succeed on your very first run, here is how a proactive DFA strategy—and our localized assembly process—saves you time and money.

1. Start Your DFA Analysis Early (At the Schematic Stage)

Most designers wait until their entire PCB layout is completely finished before sending files to an assembly house. By then, fixing a critical component clearance issue or an incompatible footprint means completely rerouting parts of your board, destroying hours of hard work.

• The Proactive Rule: The best time to think about assembly is at the very beginning of your design process. We offer a comprehensive DFA Analysis service and highly encourage our customers to loop us in while still working on the schematic. Catching footprint compatibility or pitch limitations early prevents redesign headaches later.

While both chips function identically on paper, they require completely different manufacturing approaches:

• TQFP (Thin Quad Flat Pack): This package has visible, “gull-wing” metal leads extending outward from the sides of the chip. Because the pins are clearly visible, solder paste application is forgiving, the reflow process is straightforward, and the joints can easily be inspected.
• QFN (Quad Flat No-Leads): This package has no extended pins. Instead, the electrical contacts consist of flat metal pads located entirely on the bottom surface of the chip, offering a much smaller footprint.

Why are QFN packages traditionally more expensive to assemble?
Because QFN pins sit completely hidden underneath the chip, they present unique thermal and physical challenges during manufacturing. During the reflow oven process, the large central ground pad underneath the chip can absorb heat differently than the tiny signal pads around the perimeter. If too much solder paste is applied to that central pad, the chip will actually “float” and lift up, causing the perimeter signal pins to disconnect or bridge out of sight.

How we solve this with custom stencil engineering:
While many assembly houses charge a steep premium or reject fine-pitch QFNs on low-volume runs, we bridge this gap through smart tooling design. By utilizing modified footprints and carefully tuning the solder paste stencils we build for your run, we actively mitigate these issues. We carefully segment the stencil apertures for the central pad to ensure the exact right volume of solder paste is deposited. This prevents the chip from floating, ensures a perfect coplanar bond, and makes using space-saving QFN packages highly accessible and reliable for your project.

3. The Native KiCad Advantage: Automatic Orientation

A flawless assembly run relies on knowing exactly which direction your diodes, electrolytic capacitors, and integrated circuits are facing. Traditionally, manufacturers rely solely on the printed silkscreen on the physical board to guess these orientations.

The Native File Advantage: We work natively with KiCad files. If you use KiCad, you have the unique advantage of sending us your raw project files instead of just flat Gerber images. Because we can read your native layout data, we can automatically determine the exact orientation of polarized parts and pin 1 locations directly from your digital design data.

4. Rethinking the Silkscreen

Because we extract precise orientation and pin 1 placements directly from your native KiCad project files, you do not have to complete or even print a silkscreen layer on your physical board if you do not want to.

While printing a silkscreen still offers great advantages—such as making manual lab troubleshooting, testing, and component identification much easier later on—it is no longer a strict bottleneck for our automated pick-and-place assembly lines. You have full creative and aesthetic control over how your physical board looks.

5. Respecting the Minimum Pitch Limits

Our local assembly line specializes in handling down to a 0.4mm pitch and 0603 passive components. When we review your files early in the design stage, we verify that your finest pin-to-pin pitches and passive footprints align perfectly with our machine tolerances. This ensures that solder paste will not bridge during the reflow oven process, completely eliminating hidden electrical shorts before the line ever starts moving.

Keep It Local, Keep It Fast

When you partner with an assembly house that understands the design process, manufacturing becomes effortless. For creators, engineers, and hardware startups in Canada, pairing native KiCad support and early-stage DFA reviews with a local quick-turn assembly partner means you can skip international customs delays, avoid surprise import brokerage fees, and get your physical hardware prototypes working in your hands faster than ever.
